EVO
Slow speeds, high circulation capacity and long service life
LONG-SHAFT MIXER - EVO
Sit back and relax with the EVO: Thanks to stainless steel within the substrate,
slow speeds at high circulation rates and robust bearings,
the longevity is particularly high.
Technical data
Optional installation up to 8 m below fill level
Tank opening 1.0 x 1.0 m
Vertical adjustment ±15 °
Easy installation and removal thanks to modular design
Base plate dimensions optionally at choice
Armoured seal
Seal control
Advantages
Designed for digesters with dry matter contents of up to 13%

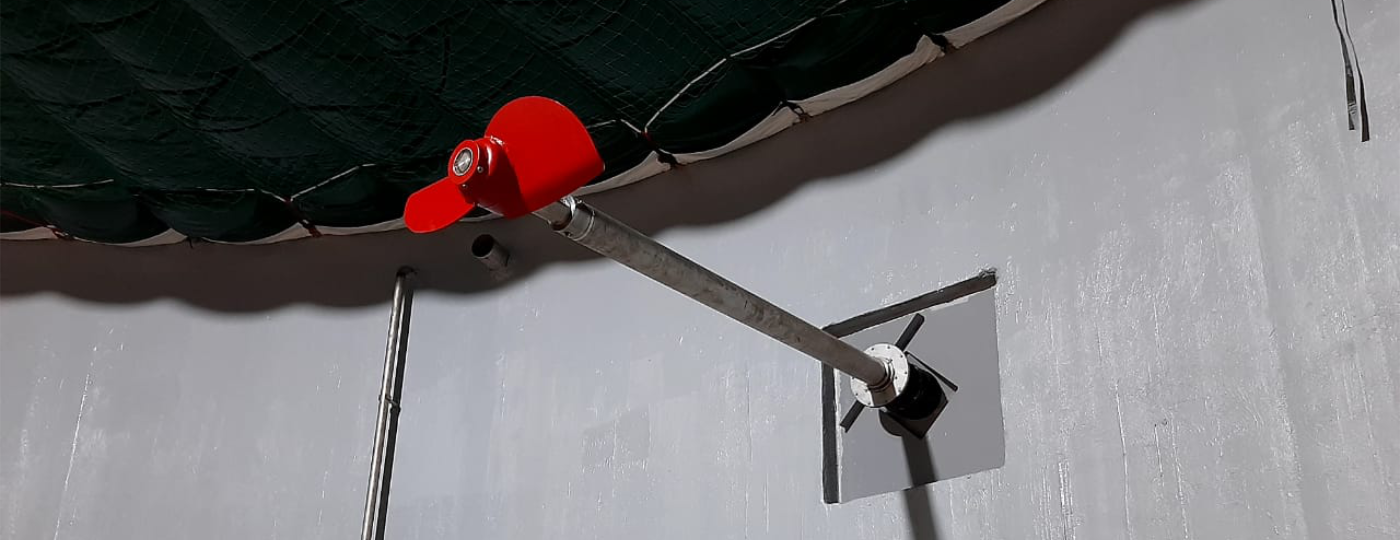

Pipe length inside the tank is 4 metres
Stirring is possible at all levels
Tested through CFD simulation
Mountable up to 8 metres below the filling level

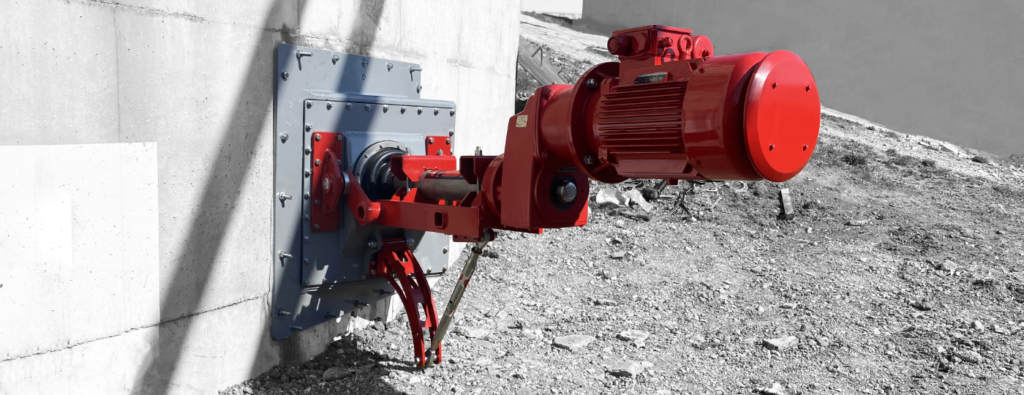

The vertical adjustment can be set by ±15° using a top link or, on request, via hydraulic adjustment. Additionally, the adjustment device is mounted on the sealing plate, eliminating the need to drill into the tank wall.
Since the pipe does not need to be filled with oil and the EVO system features a modular design, maintenance work is time- and cost-saving, which also benefits the environment.
Installation is simple, as the gas-tight base frame for the agitator is directly screwed onto the embedding frame. The system is also approved for Ex-Zone 2.
With robust bearings using tapered roller bearings and a large bearing distance, the operation is particularly stable. Motor outputs range from 15.0 to 22.0 kW, and the system is designed for pH values between 6.5 and 8.5, with substrate temperatures of up to 55°C.
We recommend soft start control/frequency converter | Supplied without connection cable
