SUBMERSIBLE CUTTING PUMPS

The up to 5 m long long shaft pump

ARMATEC submersible cutting pump

The ARMATEC-FTS submersible cutting pump is used to convey and process slurry as well as liquid, floating and floating manure.

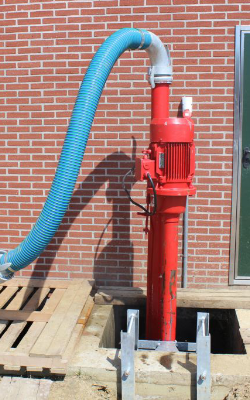

SUBMERSIBLE CUTTING PUMP TSP

The submersible cutter pump, designed as a long-shaft pump, can be delivered with a length of up to 5m.

The electric motor is protected above the liquid level and outside the pit. The pump body is located in the medium and has its suction opening on the underside. This allows the tank to be emptied as far as possible.

A shredding device integrated into the suction opening shreds long-fibre constituents in the medium.

Special application possibilities:

  • Mobile design on a chassis for lowering into the pit.
  • Stirring of the pit by means of an externally operated stirring nozzle in the pressure pipe
  • Version with a distribution box (1000 x 1000 x 1000mm)

Further details

  • Stationary for tractor operation with PTO connection
  • Stationary with distribution box: 15 and 18.5 kW I 5,500 and 6,500 l/min
  • Stationary with engine: 11 – 22 kW I 3,500 – 7,000 l/min up to pit depth 4.3 m – with agitator nozzle and barrel filling pipe
  • Mobile with motor: 11 – 18.5 kW I 3,500 – 6,500 l/min I with tricycle and four-wheel chassis
